34 Onyx – CAT34-0130

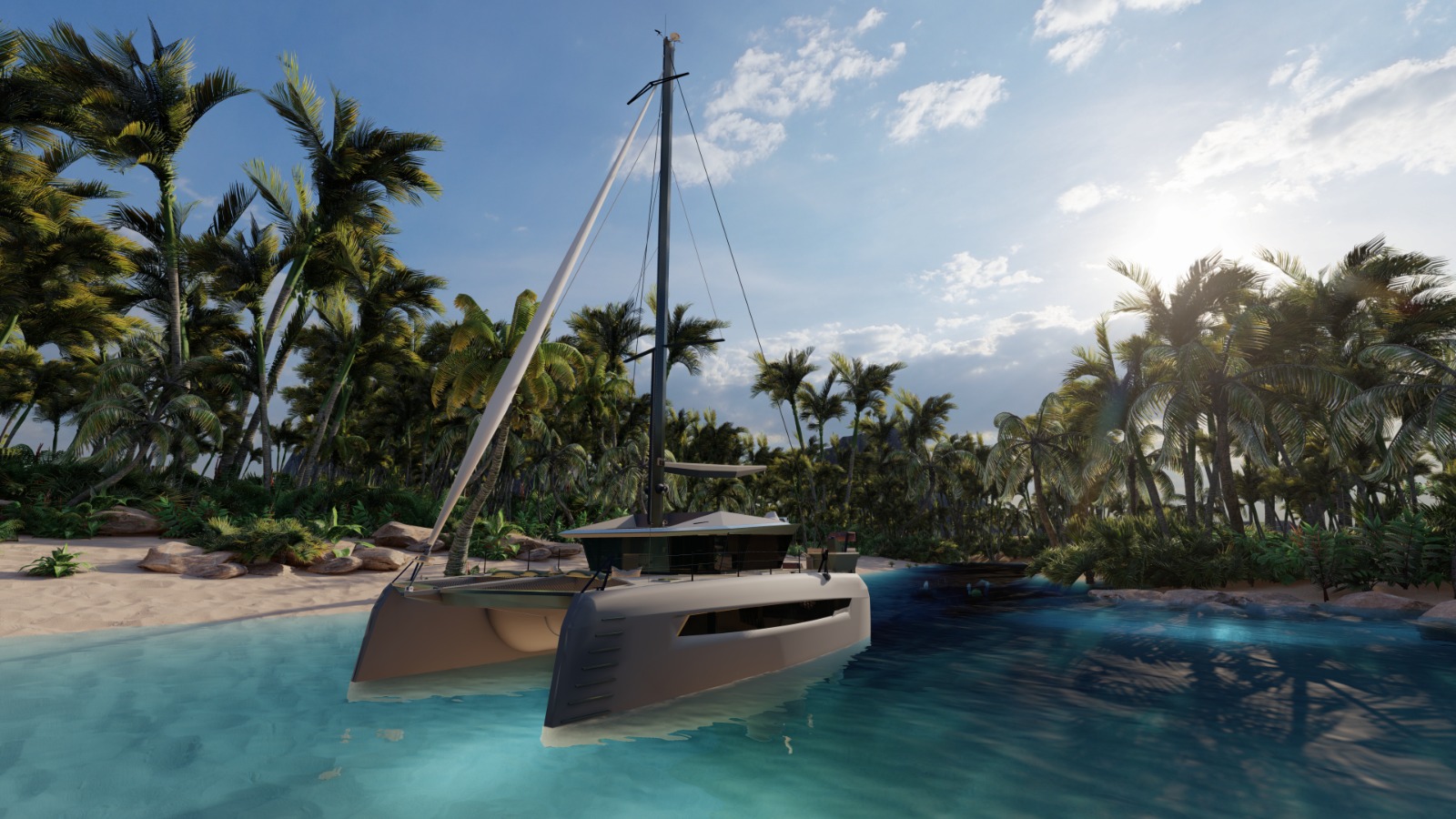

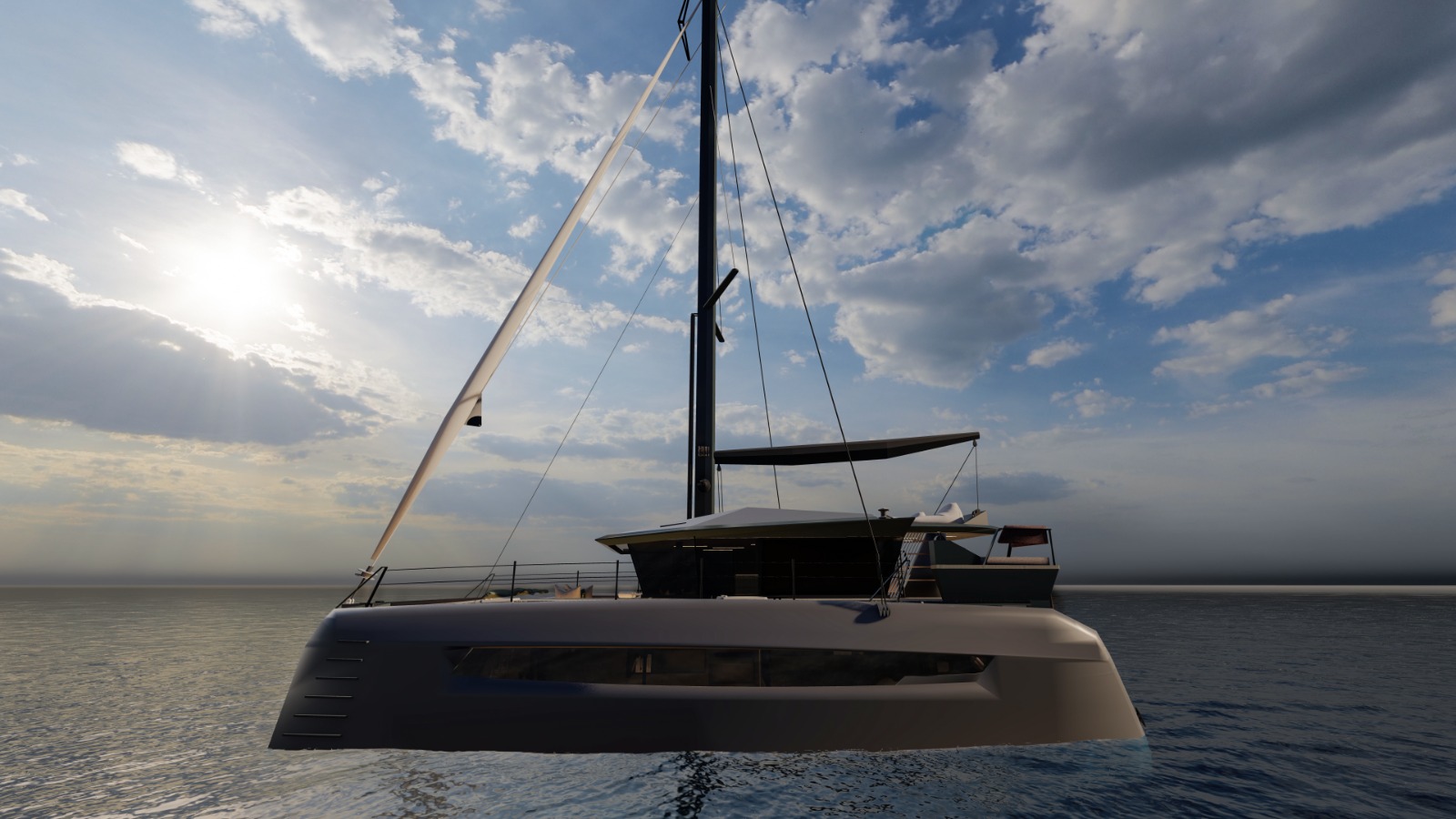

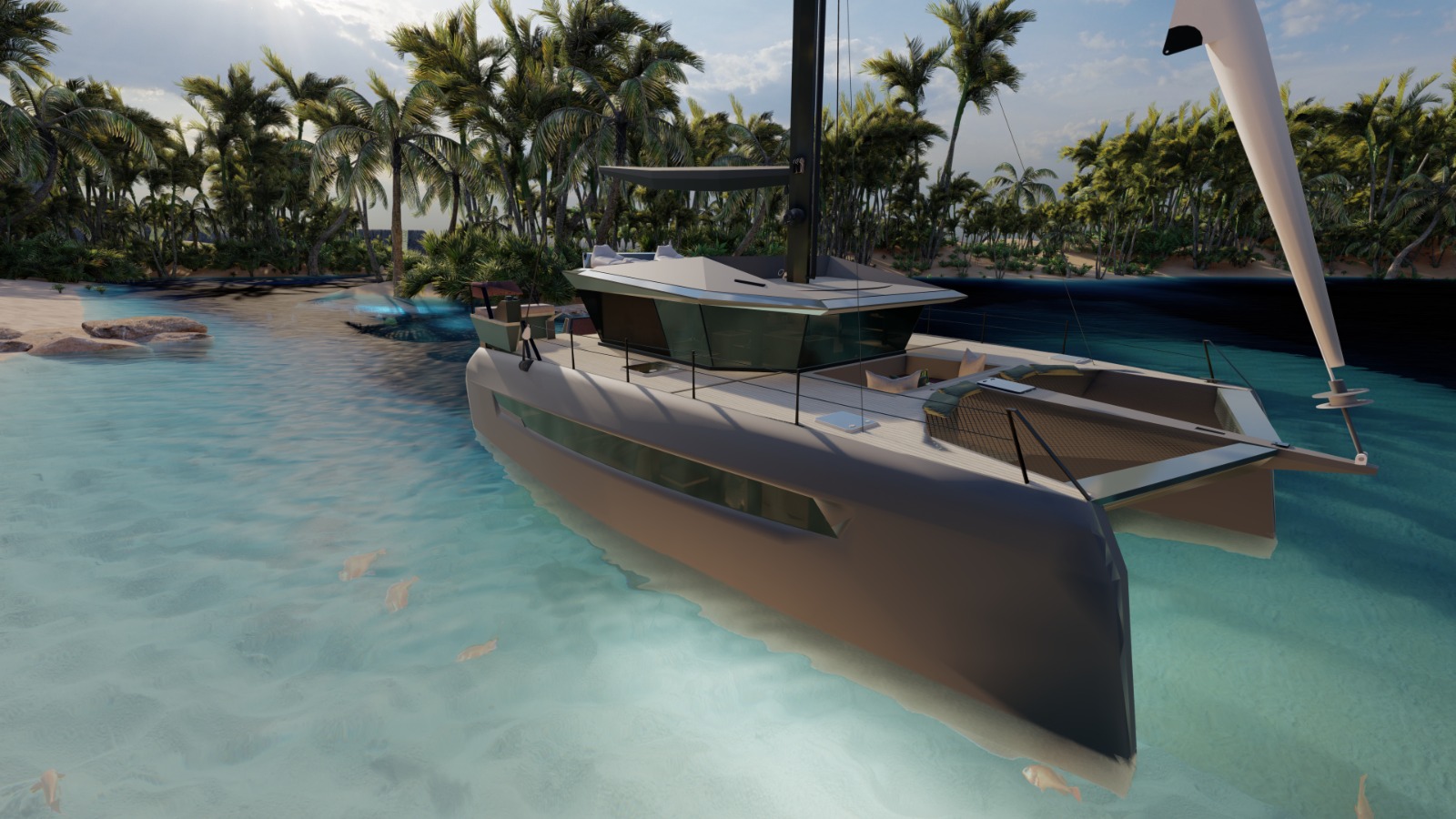

The Onyx 10.5 has been designed to be a compact vessel which can easily be sailed by one person while not compromising on comfort or blue-water capabilities. Pricing: ZAR: 7,206,000 (exclu. delivery and tax) Euro: 361.741,20 (exclu. delivery and tax)
Asking Price:
€ 413,070
€413070
Details
Launched: Unlaunched
LOA: 34' (34.44')
Beam: 6.95 m
Draft: 0.95 m
Keel: Twin Mini Keels
Displ: 5.5 Tons (dry est.)
Design: Onyx 10.5
Builder: Onyx Marine
Designer: Onyx Marine Design Office
Hull: GRP Composite Sandwich
Deck: GRP Composite Sandwich
Specifications
Rig
Sloop, aluminium mast, Carbon fibre canoe boom, aluminium forward crossbeam and compression strut, synthetic rope with load detection to trigger auto-dump in case of over canvassing, self-tacking jib. Optional extra: torque rope furler.
Sloop, aluminium mast, Carbon fibre canoe boom, aluminium forward crossbeam and compression strut, synthetic rope with load detection to trigger auto-dump in case of over canvassing, self-tacking jib. Optional extra: torque rope furler.
Sails
Total: 2 - 6-Battened Main, self-tacking Jib. Cruising laminate for both.
Total: 2 - 6-Battened Main, self-tacking Jib. Cruising laminate for both.
Winches
Total: 2 - 2 x No.30 self-tacking electric (chrome) winches. 2 Lock-in Winch handles.
Total: 2 - 2 x No.30 self-tacking electric (chrome) winches. 2 Lock-in Winch handles.
Engine
42hp Vetus M-line engine, 335L diesel storage in 1 Vetus Polyethylene tank, hydraulic propulsion to 2 x Vetus 3-blade fixed props, 3 batteries - 2 x 105Ah Lithium house-bank, 1 x 12V engine battery, 2 engine panels, 2 throttle controls - 1 at each helm station, fire suppression system in engine room.
42hp Vetus M-line engine, 335L diesel storage in 1 Vetus Polyethylene tank, hydraulic propulsion to 2 x Vetus 3-blade fixed props, 3 batteries - 2 x 105Ah Lithium house-bank, 1 x 12V engine battery, 2 engine panels, 2 throttle controls - 1 at each helm station, fire suppression system in engine room.
Steering
Twin tillers on aft deck with synthetic rope steering system, Evolution hydraulic Pilot with p70Rs control head, wireless remote with base station (autopilot). Optional extra: stabilizing winglets under the bridge deck towards bow. Rudders flip up for beaching with skegs to protect rudders and props.
Twin tillers on aft deck with synthetic rope steering system, Evolution hydraulic Pilot with p70Rs control head, wireless remote with base station (autopilot). Optional extra: stabilizing winglets under the bridge deck towards bow. Rudders flip up for beaching with skegs to protect rudders and props.
Electrics
Ray 73 VHF with integrated AIS & GPS (optional 2nd hand set), Axion+ 9’ GPS chart plotter displays at each helm station, Axion2 Pro 9 at indoor station, DST810 0o through hull depth/speed/temperature transducer, RSW - Smart Wind Transducer, CHIRP Conical Sonar for CPT-S transducer, battery management system, 2 solar panels standard, another 2 as an optional extra, 3kVA 220V inverter, Vetus kVA generator is an optional extra, shore power connection and cable.
Ray 73 VHF with integrated AIS & GPS (optional 2nd hand set), Axion+ 9’ GPS chart plotter displays at each helm station, Axion2 Pro 9 at indoor station, DST810 0o through hull depth/speed/temperature transducer, RSW - Smart Wind Transducer, CHIRP Conical Sonar for CPT-S transducer, battery management system, 2 solar panels standard, another 2 as an optional extra, 3kVA 220V inverter, Vetus kVA generator is an optional extra, shore power connection and cable.
Accommodation

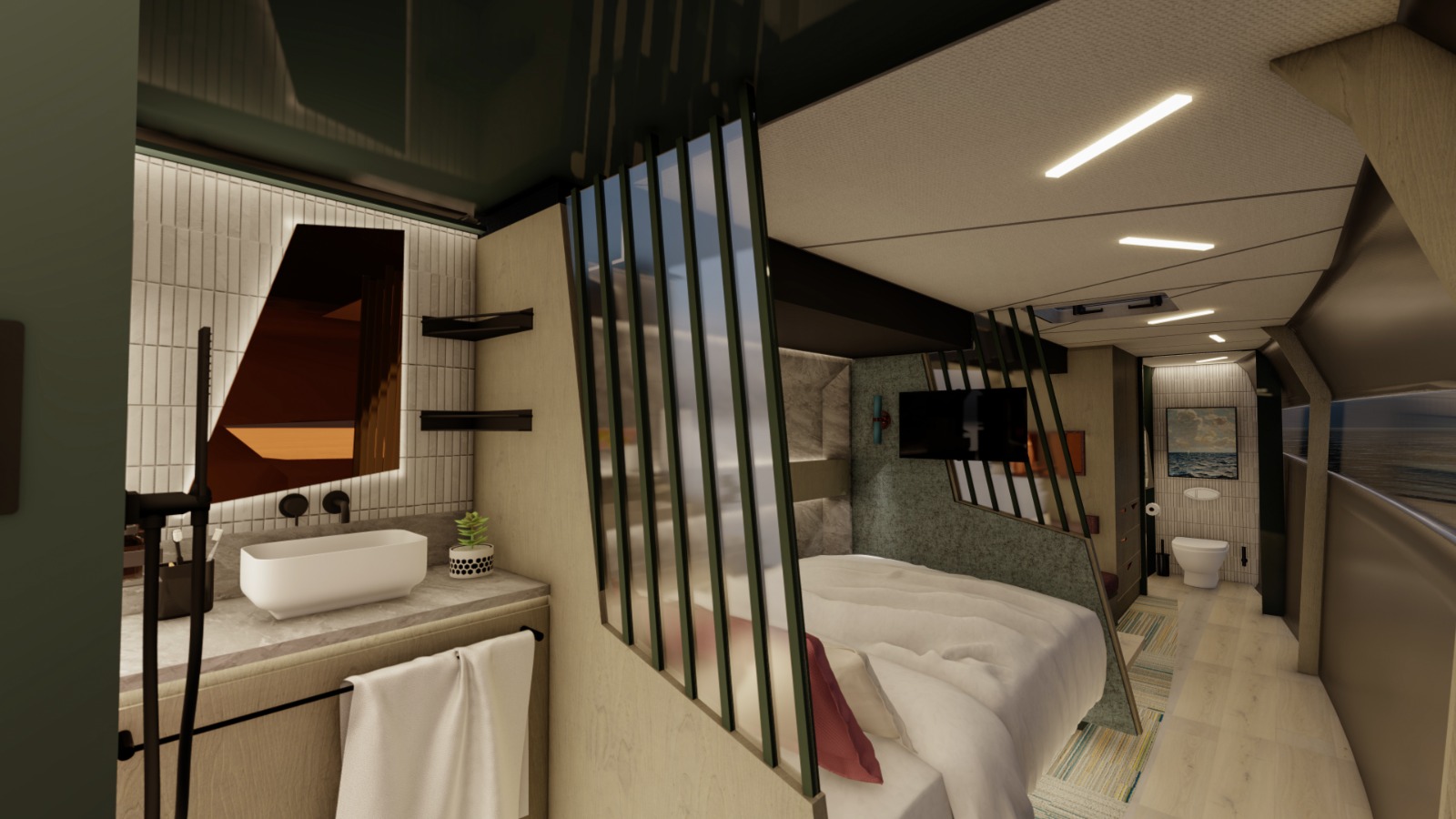

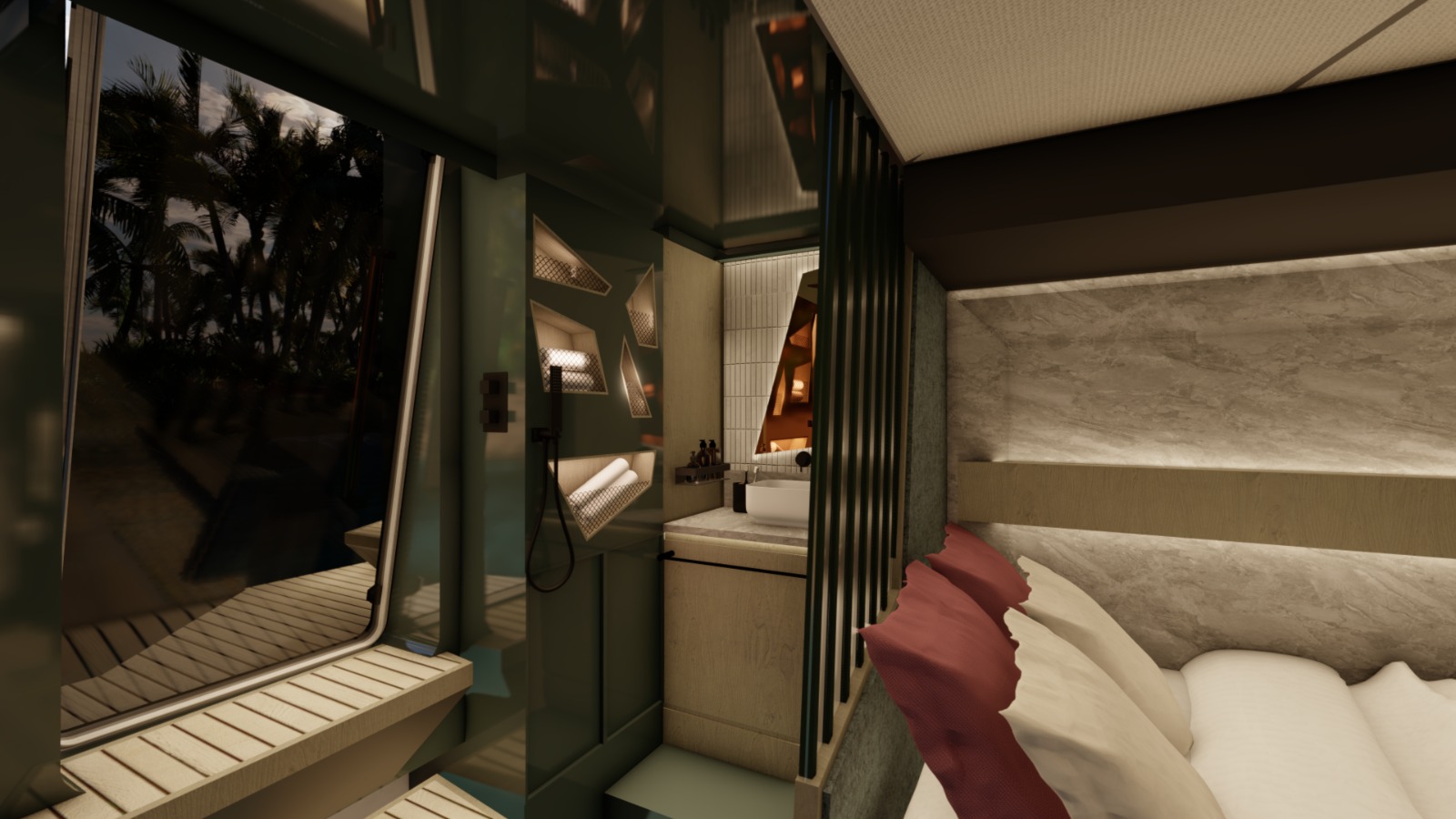

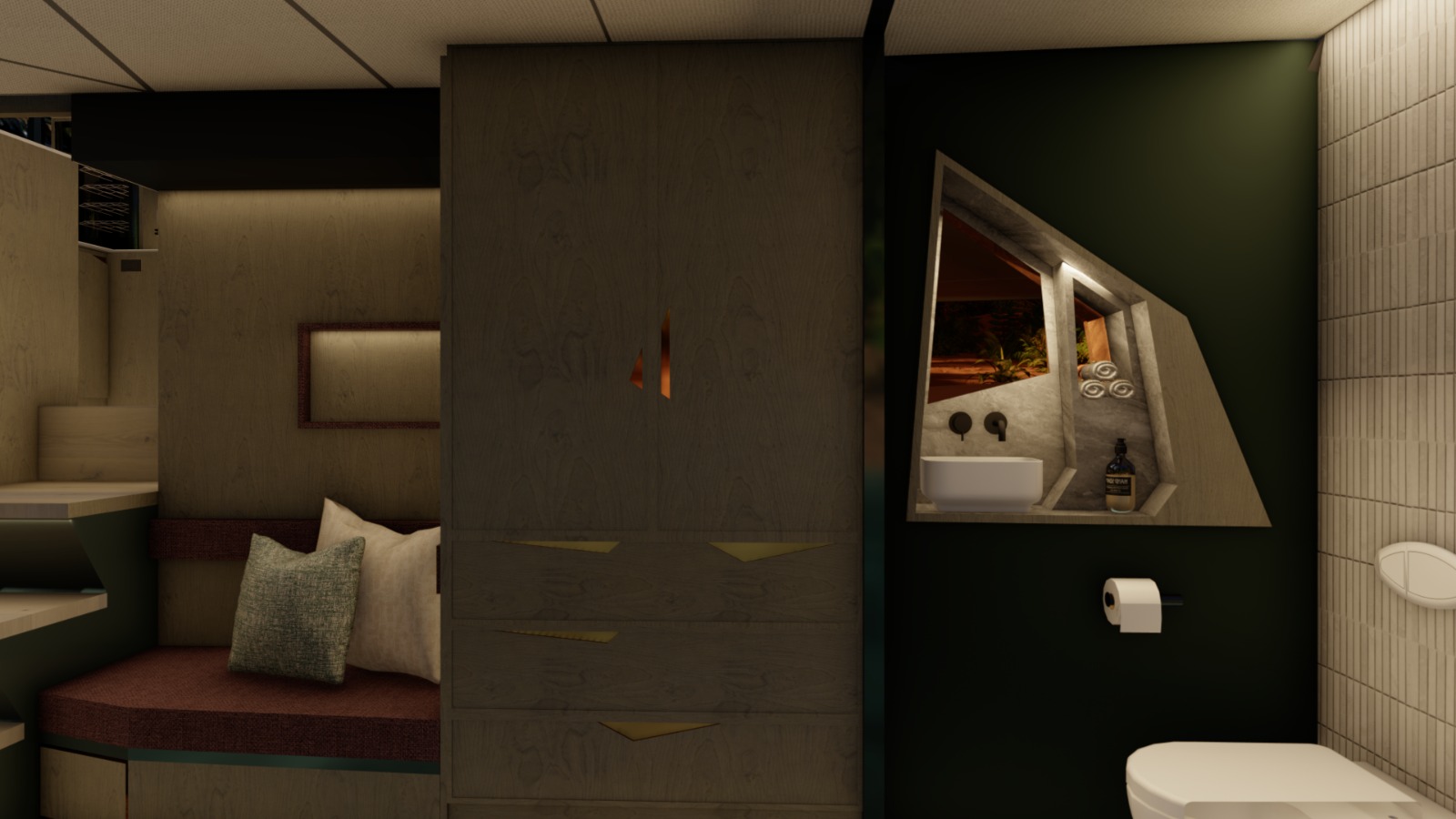

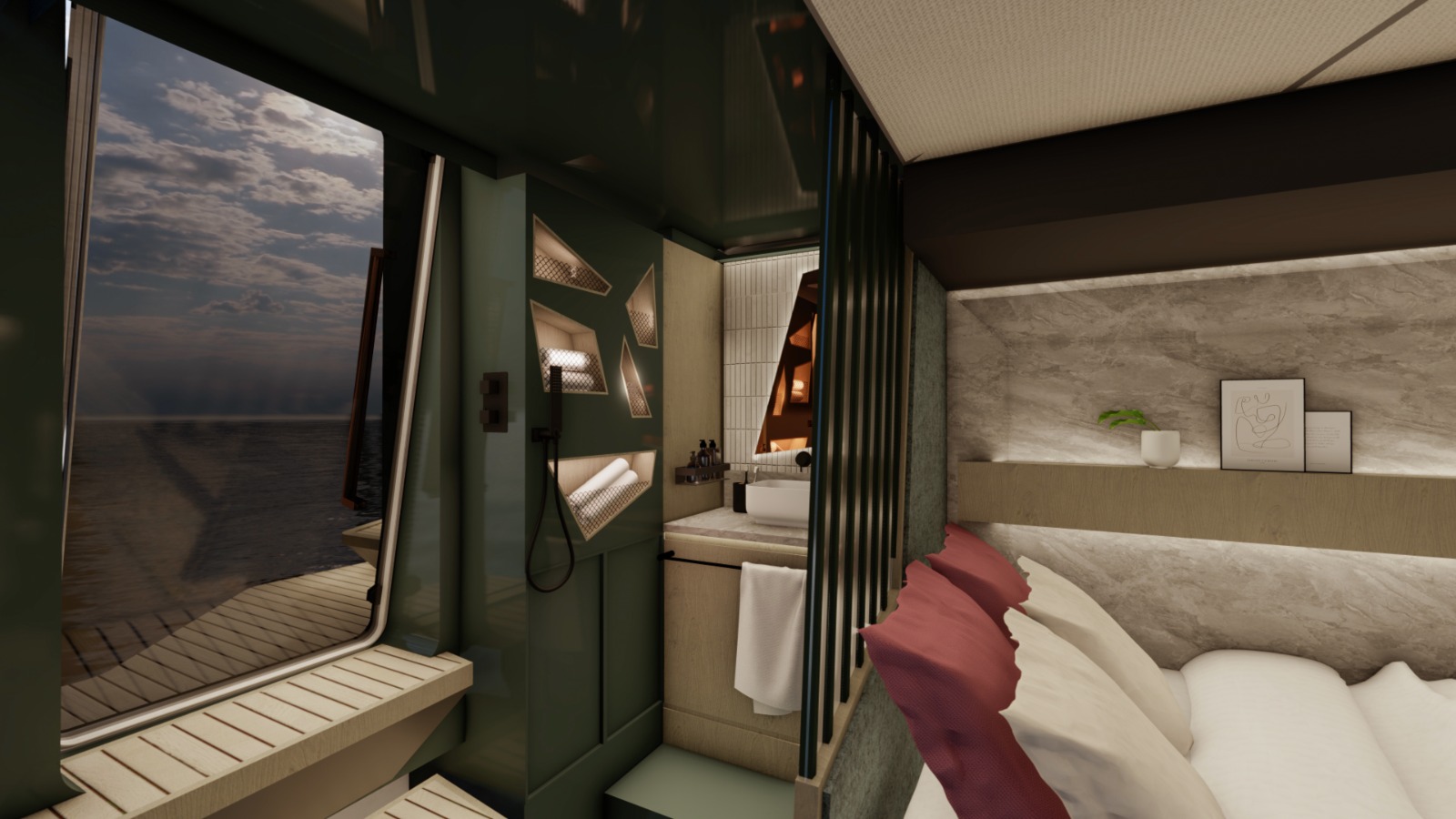

Total berths: 4 - 2 Double cabins, 2 electric heads, 2 showers, 4 hand basins, 2 x 88L grey-water tank with level sensors, aircon (optional extra). Choice of three upholstery colours for the interior and exterior, Marine vinyl Conti flooring. The innovative use of a single engine in front of the saloon allows for 2 comfortable and private cabins with studies in each hull with access to the saloon and directly from the transom which is incredible in such a compact vessel. This allows for niceties such as convenient scuba gear stowage to be fitted where you enter from the transom directly into the wet locker / shower area with a separate toilet in the front of the hull.
Total berths: 4 - 2 Double cabins, 2 electric heads, 2 showers, 4 hand basins, 2 x 88L grey-water tank with level sensors, aircon (optional extra). Choice of three upholstery colours for the interior and exterior, Marine vinyl Conti flooring. The innovative use of a single engine in front of the saloon allows for 2 comfortable and private cabins with studies in each hull with access to the saloon and directly from the transom which is incredible in such a compact vessel. This allows for niceties such as convenient scuba gear stowage to be fitted where you enter from the transom directly into the wet locker / shower area with a separate toilet in the front of the hull.

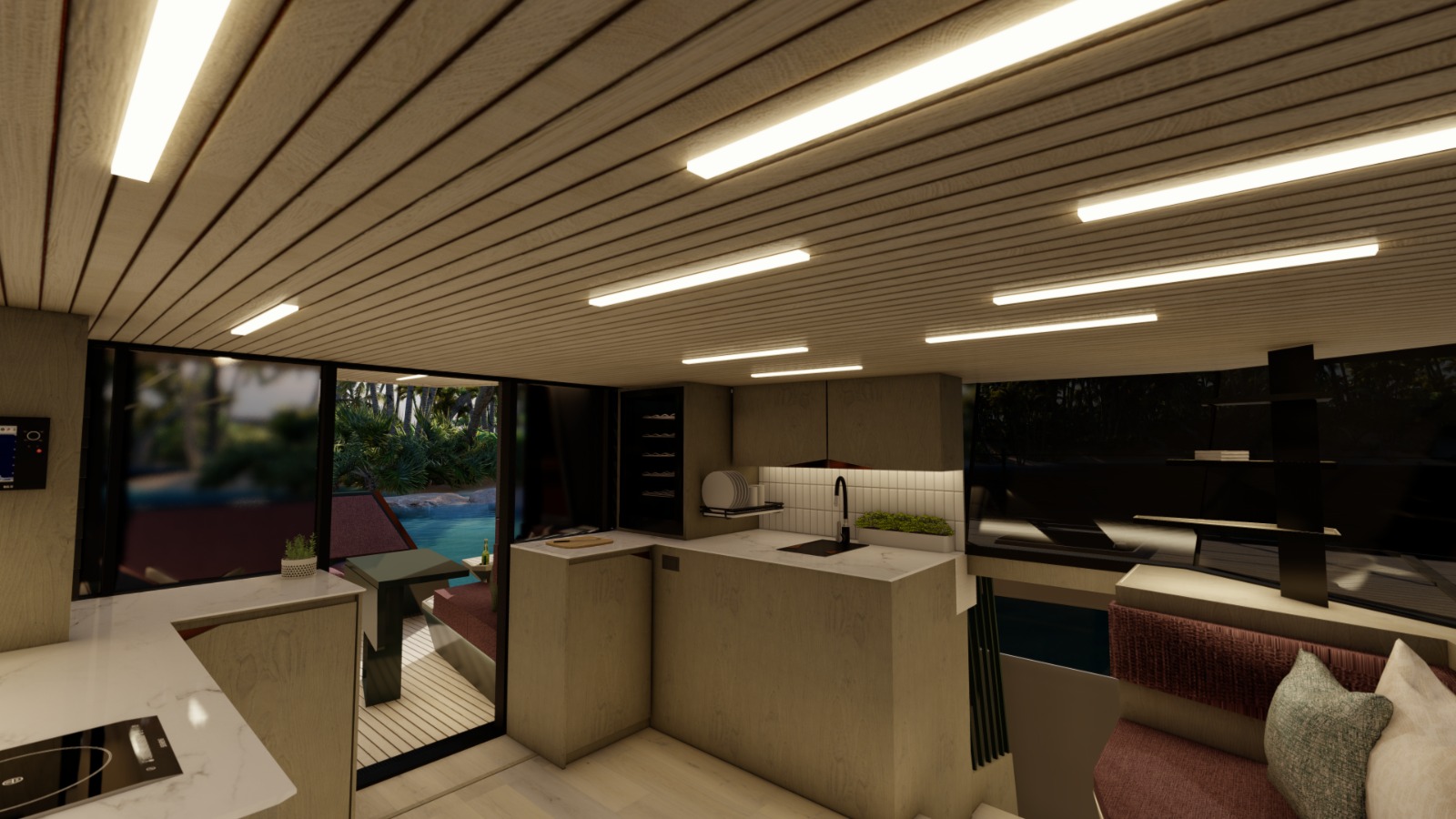

Galley

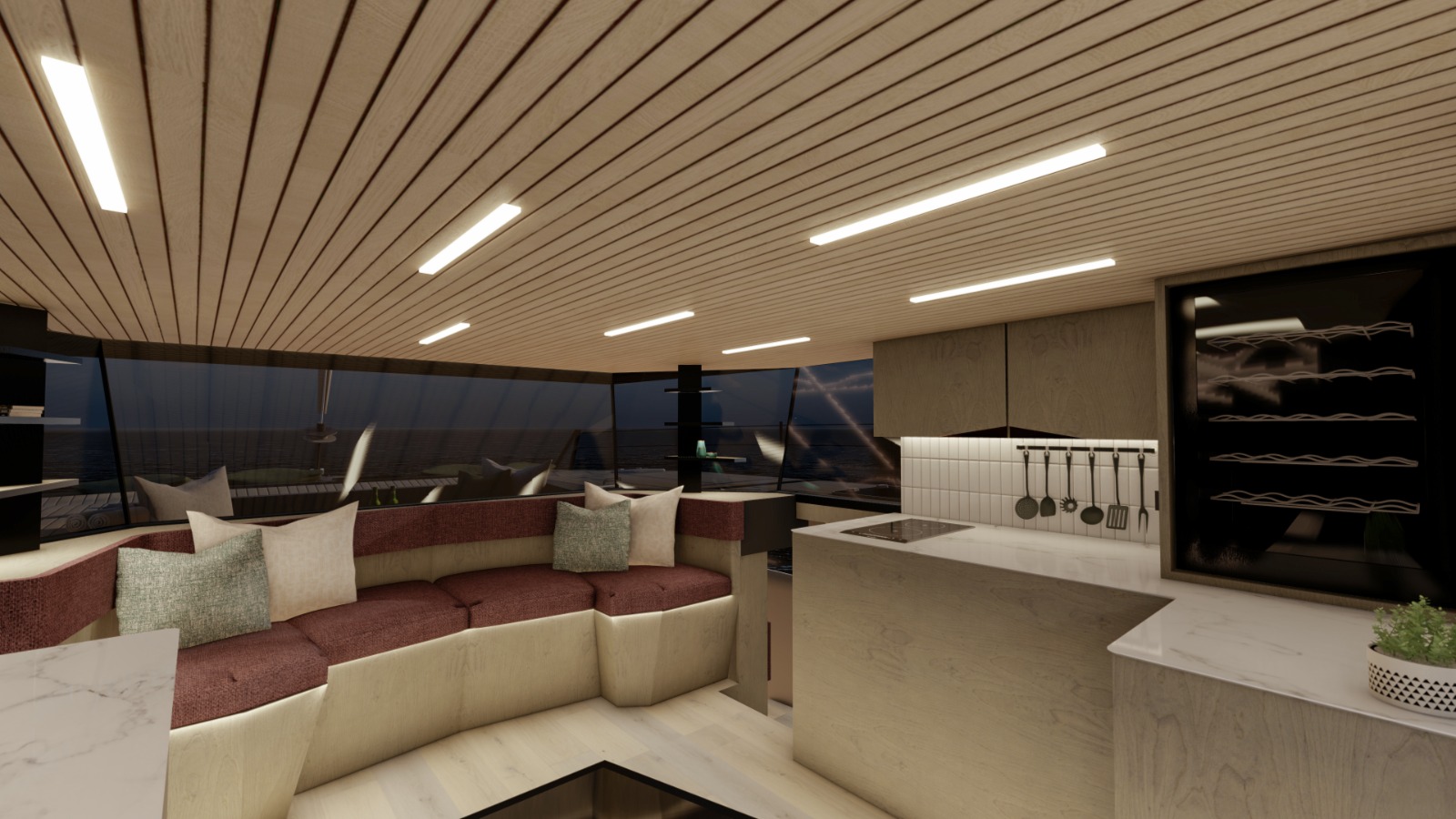

4-Burner gas hob, microwave, 200L 12V fridge/freezer, optional wine cooler, 2 x 9kg gas bottles with 1 regulator, 1 electronic gas monitor and 1 electronic solenoid valve, double sink, pressurised hot and cold fresh water system.
4-Burner gas hob, microwave, 200L 12V fridge/freezer, optional wine cooler, 2 x 9kg gas bottles with 1 regulator, 1 electronic gas monitor and 1 electronic solenoid valve, double sink, pressurised hot and cold fresh water system.
Plumbing
520L water storage in 4 Vetus flexible tanks - 2 per hull (100L and 160L), water level sensors, pressurised hot and cold fresh water system - hot from 55L double wall 230V geyser, 2 hot and cold transom showers, deck-wash with in/outlet, 4 bilge pumps - 2 manual and 2 electric.
520L water storage in 4 Vetus flexible tanks - 2 per hull (100L and 160L), water level sensors, pressurised hot and cold fresh water system - hot from 55L double wall 230V geyser, 2 hot and cold transom showers, deck-wash with in/outlet, 4 bilge pumps - 2 manual and 2 electric.
Safety
2 Anchors - 35kg Rocna with spare for tender, 30m x 8mm chain, 10m x 14mm nylon rope, Vetus Maxwell hydraulic Windlass VWRC 10-8 24V, 6 life jackets, life ring, danbuoy, 2 fire extinguishers, radar reflector, boat hook, wooden bungs, torch, bosun’s chair, first-aid-kit, 6-man Viking life raft, Epirb (as per SAMSA Cat A).
2 Anchors - 35kg Rocna with spare for tender, 30m x 8mm chain, 10m x 14mm nylon rope, Vetus Maxwell hydraulic Windlass VWRC 10-8 24V, 6 life jackets, life ring, danbuoy, 2 fire extinguishers, radar reflector, boat hook, wooden bungs, torch, bosun’s chair, first-aid-kit, 6-man Viking life raft, Epirb (as per SAMSA Cat A).
Extras
1 Year structural warranty, owners manual, complete set of equipment manuals, 2 coats gel shield primer, 2 coats ablative anti-fouling, water-tight crash bulkheads in bow, 2 x 230V flatscreen TV’s, 10m Anchor bridle, dingy fixing points in roof, 2 lifting points for tender with load limits, gas BBQ built-in to cockpit (icemaker optional extra), 2 retractable swim ladders.
1 Year structural warranty, owners manual, complete set of equipment manuals, 2 coats gel shield primer, 2 coats ablative anti-fouling, water-tight crash bulkheads in bow, 2 x 230V flatscreen TV’s, 10m Anchor bridle, dingy fixing points in roof, 2 lifting points for tender with load limits, gas BBQ built-in to cockpit (icemaker optional extra), 2 retractable swim ladders.
Remarks
The Onyx 10.5 has been designed to be a compact vessel which can easily be sailed by one person while not compromising on comfort or blue-water capabilities. Hull number 1 had been snapped up but there is still opportunity to take advantage of launch pricing. Construction is E-glass and Lloyds approved resin laminate with structural spec density, closed cell 20mm PVC core (GRP) with voluntary of conformity to CE Standards. Pricing and specifications for the standard boat may be updated, so please get in touch for the latest updates from the factory.
The Onyx 10.5 has been designed to be a compact vessel which can easily be sailed by one person while not compromising on comfort or blue-water capabilities. Hull number 1 had been snapped up but there is still opportunity to take advantage of launch pricing. Construction is E-glass and Lloyds approved resin laminate with structural spec density, closed cell 20mm PVC core (GRP) with voluntary of conformity to CE Standards. Pricing and specifications for the standard boat may be updated, so please get in touch for the latest updates from the factory.
Asking Price
€ 413,070
